Auto Clave

Digital Controller cum data logger with Software FO value with USB data converter & cable with Fully Automatic having all the feature of low level water cut off feature, purging system, timer, & releasing of the steam after completing the sterilization of the cycle.
Pressure Transducer with Pressure Data in Software.

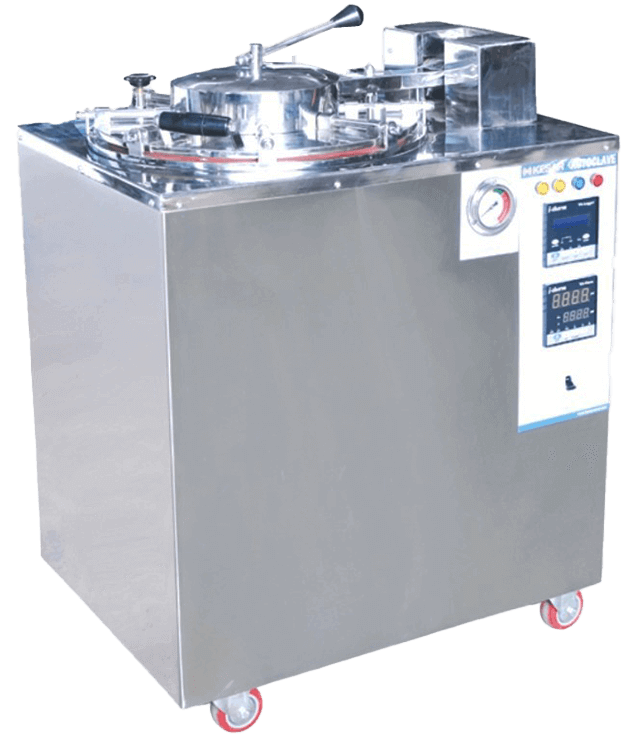

Vertical Autoclave widely used in Microbiology Laboratory, Waste treatment Plant, Pharma QC/ QA/ R & D and all applications requiring sterilization.
Double walled construction with Inner chamber (boiler) made of SS 304 grade(1 6 SWG Sheet) and Outer shell of SS -304 grade, micro polish.
The Boiler and outer shell is provided with air insulation.
Lid is made of die pressed Thick Stainless Steel plate & is equipped with Pressure gauge, Steam release / Exhaust valve & spring loaded safety valves & 1 ,/2" BSP Port fitted with coupling forvalidation purpose.
Foot lifting arrangement forthe lid.
Fully Argon welded to avoid steam and pressure leakage.
Heavy duty industrial flange heaters.
Full sterilization cycle including Air purging, Sterilizing hold time, Cycle end with release/exhaust of pressure.
Microprocessor based Controller with time and temperature proarammable bv user.
Timer Range : 1-99 Minutes. • Temperature Sensor : PT- 100.
Low water level alarm with heater cut off.
Perforated basket made of Stainless Steel sheet - 304 grade.
Operates on 230 Volts AC Single phase 50Hz.

Model	Size (DIA X HT)		Rating	Capacity (Ltrs.)	No. of Basket
Model	INCH	CM	Rating	Capacity (Ltrs.)	No. of Basket
KGAC-35	12 Ø x 20 Ht	35 Ø x 55 Ht	2000 W	35	1
KGAC-53	14 Ø x 22 Ht	35 Ø x 55 Ht	3000 W	53	1
KGAC-75	16 Ø x 24 Ht	40 Ø x 60 Ht	4000 W	75	1
KGAC-95	18 Ø x 24 Ht	45 Ø x 65 Ht	4000 W	95	1
KGAC-125	18 Ø x 30 Ht	45 Ø x 75 Ht	5000 W	125	2
KGAC-185	22 Ø x 30 Ht	55 Ø x 75 Ht	6000 W	185	2
KGAC-215	22 Ø x 35 Ht	55 Ø x 90 Ht	6000 W	215	2
