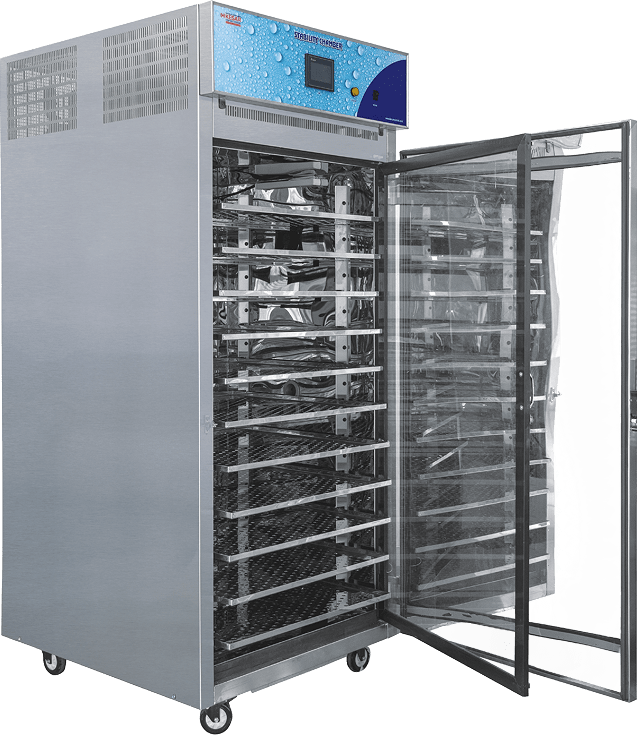

Humidity Chamber

A humidity chamber is a device used to artificially replicate various environmental conditions by procedurally altering just two specific factors. Temperature and relative humidity. A humidity chamber is thus used comprehensively in the testing of drugs & medicines in the pharmaceutical industry, to determine the basic shelf-life of the said drugs along with their resistance to environmental changes. The Humidity chamber can be classified into environmental chambers, temperature – humidity chambers, accelerated test chambers, and photo stability chambers, cold chambers, depending on the respective parameter of testing. Physically, they are classified into reach-in chambers which are smaller in size, and walk-in chambers which are large enough to be walked into. A humidity chamber works by using compressors to maintain the temperature in the chamber, and thus, the relative humidity, which it also does by the use of a separate water reserve through boiler heater.As a leading humidity chamber manufacturer, we prioritize precision and reliability in crafting devices that simulate precise environmental conditions for pharmaceutical testing

Chamber Interior is fabricated of stainless steel with dull finish & exterior is of stainless steel / G.I. Powder coated.
The inner working chamber is water & vapour tight high grade stainless steel. All seams are arc-welded & passivity for strength & durability.

A humidity chamber is a precision testing equipment that works under very tight tolerances. Temperature variations within the chamber shouldn't deviate more than 2 to 3 degree celsius, and the humidity, no more than 5 percent either way. When it comes to photo stability chambers, the light emitted should be 1.2 million lux hours and it should emit more than 200 watts of UV energy for testing samples.

A multi-pane viewing door prevents condensation & allows product view. Inner & outer doors are sealed around the entire perimeter by a silicone sponge rubber gasket.

Temperature Range	20 ℃ to 60 ℃
Humidity Range	40%RH to 95%RH
Accuracy	+0.2 ℃ & +2.0% RH
Uniformity	+2.0 ℃ & +3.0% RH
Test Suitable for	25 ℃ & 60% RH, 30 ℃ & 65% RH 40 ℃ & 75% RH, 30 ℃ & 75% RH
Specially designed chambers for Low Humidity conditions such as 25 ℃ 40% RH, 40 ℃ 25% RH, 30 ℃ 35% RH
Control System	PLC or PID Based

Models	Capacity (in ltrs.)	Dimensions (W X D X H)		No. of Trays
Models	Capacity (in ltrs.)	Internal (mm) Width Depth Height	External (mm) Width Depth Height	No. of Trays
KGOS-90	90	450 X 400 X 500	600 X 1010 X 1060	2
KGOS-227	227	600 X 630 X 600	750 X 1190 X 1210	3
KGOS-325	325	600 X 630 X 900	750 X 1190 X 1510	5
KGOS-400	400	600 X 630 X 1060	750 X 1190 X 1670	6
KGOS-500	500	600 X 630 X 1330	750 X 1190 X 1940	8
KGOS-600	600	800 X 800 X 950	950 X 1360 X 1560	5
KGOS-800	800	800 X 800 X 1250	950 X 1360 X 1860	7
KGOS-1000	1000	800 X 800 X 1570	950 X 1360 X 2180	10

Heavy duty stainless steel construction
Illuminated interior.
Multi-pane viewing door prevents condensation to ensure a proper view.
Heavy-duty solid stainless steel duly electro polished perforated type trays which are easy to clean and adjustable.

21 CFR PART-11 COMPLIANCE: Log data, Event data, Audit, Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.
Door hinges and latches are durable and of high quality to ensure a perfectly uniform seal in the long term.
Inner and outer doors are completely sealed by silicone sponge rubber gaskets for maximum efficacy.

Log data, Event data, Audit, Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.

Heavy duty solid stainless steel duly electro polished wire mesh type trays are provide which are easy to clean, time & efforts saving, also adjustable for convenience.
