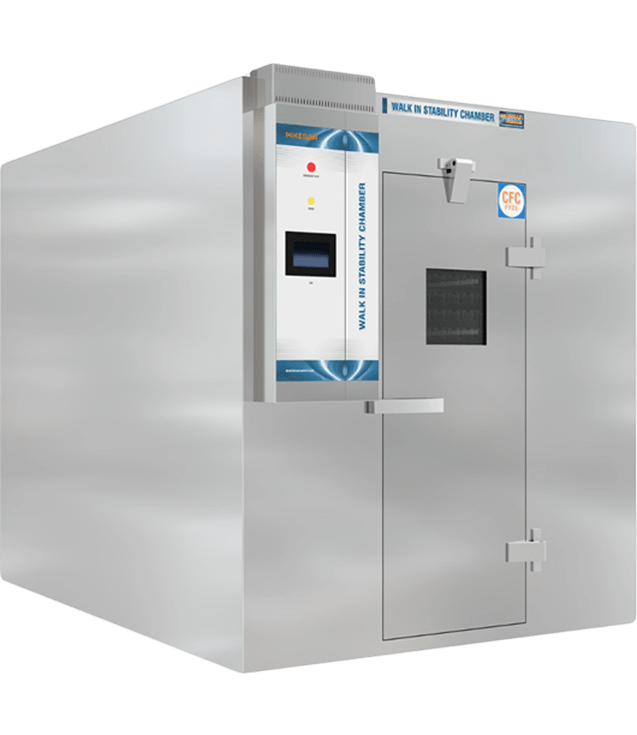

Eco Smart Walk In Stability Chamber

A Walk-in chamber is a stability chamber that is large enough for a scientist to physically walk into and perform their tests. Walk-in chamber types are prevalent in more prominent pharmaceutical companies where large batches of drugs are to be tested at the same time. Other than that, a walk-in chamber works in the same way as a normal reach-in stability chamber by managing the parameters of temperature and relative humidity within the walk-in chamber to perform tests.

Pre-fabricated modular panel type construction with PUF insulation to be assembled on site with floor panels having extra reinforcement to sustain the movement and sample load inside the chamber
The inner working chamberiswater&vapourtighthigh-gradestainless steel.
Chambers are provided with effective air circulation system, heating & cooling systems and humidity generator system.
Multi pane vacuum sealed observation glasswindow to view the samples without disturbing the test condition & human safety.
Heavy duty solid stainless steel duly electro polished wire mesh/perforated type trays are provided which are easy to clean, time & efforts saving, also adjustable for convenience, along with detachable racks with adjustable angles.

A Walk-in Chamber is a precision scientific tool that requires the highest level of precision even in the making to ensure it is safe for use. After all, scientific testing for pharmaceuticals is done by scientists physically entering the chamber to perform their experiments.

Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.

7" HMI with TFT LCD Colourtouch screen with password protection for all parameter actual status monitoring of utilities like Sensor, Heating & Cooling System, Humidity System.
Imported make 4-20mAsensorsfor better accuracy
PLC with auto tuning facility for accurate control of temperature and humidity conditions.
Data Storage facility in HMI and PLC Both PLC'S Stored data transfer in software via Ethernet and HMI'S Stored data can beveiw obtain in PDF form through USB Drive.

Models	Capacity (in ltrs.)	Dimensions (W X D X H)		Tray Size	No. of Trays
Models	Capacity (in ltrs.)	Internal (mm) Width Depth Height	External (mm) Width Depth Height	Tray Size	No. of Trays
KGeWS-8000	8000	1850 X 2080 X 2080	1970 X 2200 X 2200	820 X 590	16
KGeWS-10000	10000	1850 X 2600 X 2080	1970 X 2720 X 2200	710 X 590	24
KGeWS-12000	12000	1850 X 2850 X 2280	1970 X 2970 X 2400	790 X 590	24
KGeWS-16000	16000	2250 X 3000 X 2380	2370 X 3120 X 2500	840 X 725	24
KGeWS-18000	18000	2250 X 3380 X 2380	2370 X 3500 X 2500	715 X 725	32
KGeWS-20000	20000	2250 X 3700 X 2380	2370 X 3820 X 2500	810 X 725	32
Note: We Offer Also Customized Models Starting From 8000 Ltr And Higher To Meet The Maximum Utilization Of Available Space And Capacity Requirements Of Our Client.

Dew point Control:
Measure of atmospheric moisture
Temperature to which air must be cooled in order to be saturated with water vapour already in the air.
Temperature at which dew or frost will form
Coil temperature controlled as per Dew point and Psychometric chart.
Features:
Works on the principle of Dew point Control
No Deviations during short-term door opening & power failure.
No utility Area | More storage area
Lower Operating cost | Minimum power & water Consumption
Less deviations | Less breakdowns
Increase in system & process efficiencies through reduced energy consumption.

Special door lock is provided which can opened from inside even if locked from outside.
Password Protected Door Access.
Person trapped Emergency stop protection.
Low Power Consumption
Less Water Consumption
Less Breakdown
More Storage Area
Less Deviations
PLC Control
Safety
Ethernet
Software
Mobile Alert
E-Mail Alert
Documents

Special door lock which allows opening of the door from the inside even if locked from outside.
Password protected door access.
Person trapped cut off facility in the chamber.
21 Cfr Part-11 Compliance: Log data, Event data, Audit, Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.
Temperature deviation & RH deviation alarm.
Power Failure Alarm.
Extreme temperature & RH prevention cut-off system.
Low water level cut off.
