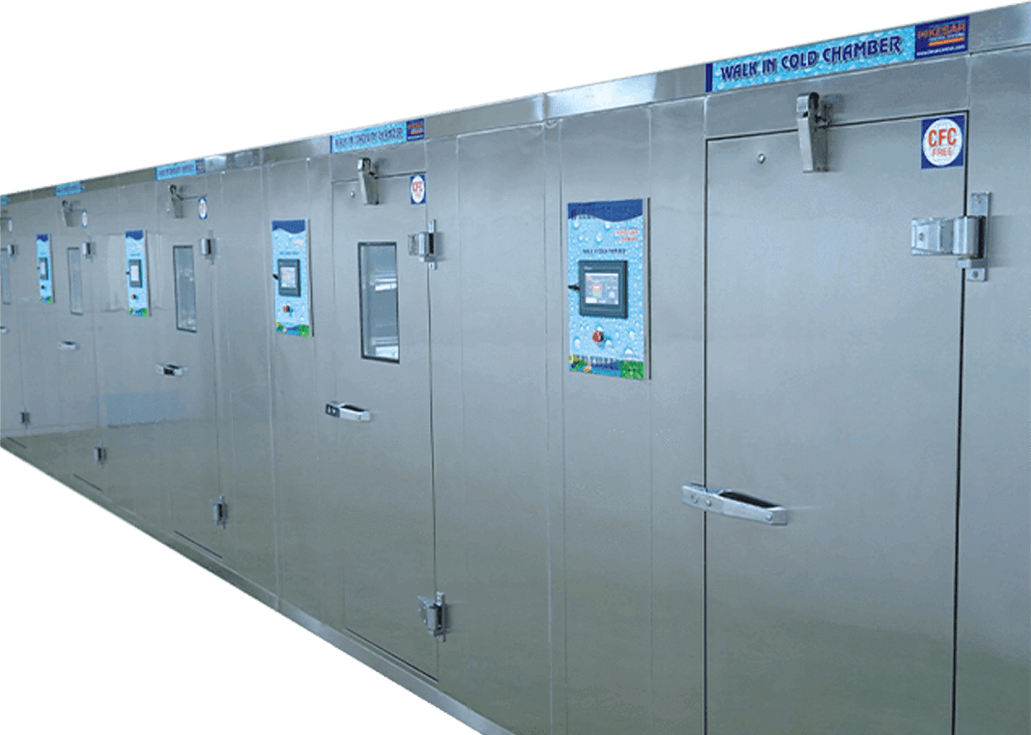

walk in stability chamber

A Walk-in chamber is a stability chamber that is large enough for a scientist to physically walk into and perform their tests. Walk-in chamber types are prevalent in more prominent pharmaceutical companies where large batches of drugs are to be tested at the same time. Other than that, a walk in stability chamber works in the same way as a normal reach-in stability chamber by managing the parameters of temperature and relative humidity within the walk-in chamber to perform tests.As a trusted walk in stability chamber manufacturer, our commitment to precision and quality ensures that these chambers deliver reliable and accurate results, meeting the stringent standards of the pharmaceutical industry.

Pre-fabricated modular panel type construction with PUF insulation to be assembled on site.
Floor panels have extra reinforcement to sustain the movement and sample load inside the chamber.
The internal mechanism is water and vapor tight, made with high-grade stainless steel.
Chambers are installed with an effective air circulation system, heating & cooling systems, & humidity generator system.
Multi-pane vacuum-sealed observation glass window to view the samples without disturbing the test condition & human safety.
Heavy-duty solid stainless steel duly electro polished wire mesh type trays are easy to clean and contribute to time-saving and reducing efforts. The trays are adjustable to convenience with detachable racks & adjustable handles.

A Walk-in Chamber is a precision scientific tool that requires the highest level of precision even in the making to ensure it is safe for use. After all, scientific testing for pharmaceuticals is done by scientists physically entering the chamber to perform their experiments.

Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.

7″ HMI with TFT LCD Colour touch screen with password protection for all parameter actual status monitoring of utilities like Sensor, Heating & Cooling System, Humidity System.
Imported make 4-20mA sensors for better accuracy.
PLC with auto tuning facility for accurate control of temperature and humidity conditions.
Data Storage unit facility to transfer the data to software via Ethernet for web based online remote monitoring with Date, Time, SV, PV, Door Open / Power On / Off remarks. Direct report printout provision from HMI.

Temperature Range	20 ℃ to 60 ℃
Humidity Range	40%RH to 95%RH
Accuracy	+0.2 ℃ & +2.0% RH
Uniformity	+2.0 ℃ & +3.0% RH
Test Suitable for	25 ℃ & 60% RH, 30 ℃ & 65% RH 40 ℃ & 75% RH, 30 ℃ & 75% RH
Specially-designed chambers for Low Humidity conditions such as 25 ℃ 40% RH, 40 ℃ 25% RH, 30 ℃ 35% RH

Models	Capacity (in ltrs.)	Dimensions (W X D X H)		No. of Trays
Models	Capacity (in ltrs.)	Internal (mm) Width Depth Height	External (mm) Width Depth Height	No. of Trays
KGWS-3KL	3000	1600 X 940 X 2000	1720 x 1060 x 2120	10
KGWS-6KL	6000	1800 X 1800 X 2000	1920 X 1920 X 2120	16
KGWS-8KL	8000	2000 X 2000 X 2000	2120 X 2120 X 2120	16
KGWS-10KL	10000	2000 X 2500 X 2000	2120 X 2620 X 2120	24
KGWS-12KL	12000	2000 X 3000 X 2000	2120 X 3120 X 2120	40
KGWS-16KL	16000	2000 X 4000 X 2000	2120 X 4120 X 2120	40
Note: Other size of walk in stability chamber are available on request.

Special door lock is provide which can opened from inside even if locked from outside.
Door operation with password Access for Particular USER having the event log. Door open ENTRY USER:-XYZ & Door open EXIT USER:-XYZ in software.
Person trapped cut off facility in chamber.

Special door lock which allows opening of the door from the inside even if locked from outside.
Password protected door access.
Person trapped cut off facility in the chamber.
21 CFR PART-11 COMPLIANCE: Log data, Event data, Audit, Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.
Temperature deviation & RH deviation alarm.
Power Failure Alarm.
Extreme temperature & RH prevention cut-off system.
Low water level cut off.
