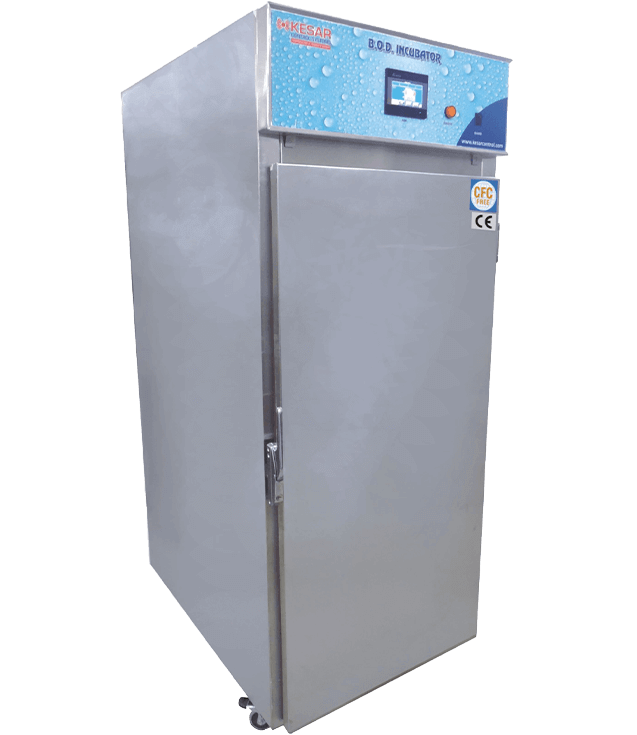

Bacteriological Incubator

Fabricated on fully automatic CNC machines.
The inner working chamber is water & vapour tight high-grade stainless steel.
All seams are arc-welded & passivity for strength & durability.
Chambers are provide with effective air circulation system.
Double Door: Inner full viewing glass door and outer door insulated with lock and key arrangement. Inner and outer doors are sealed with silicone sponge rubber gasket.
Control panel with electrical switch Gear front for easy service accessibility.
Equipment mounted on heavy castor wheels for easy movement.
Heavy duty solid stainless duly electro polished wire mesh type/perforated trays are provided which are easy to clean, time & efforts saving, also adjustable for convenience.

	Capacity (in ltrs.)	Dimensions (W X D X H)		MAX No. of Trays
	Capacity (in ltrs.)	Internal (mm) Width Depth Height	External (mm) Width Depth Height	MAX No. of Trays
KGOI-90	90	450 X 400 X 500	600 X 910 X 1060	2
KGOI-227	227	600 X 630 X 600	750 X 1090 X 1210	3
KGOI-325	325	600 X 630 X 900	750 X 1090 X 1510	5
KGOI-400	400	600 X 630 X 1060	750 X 1090 X 1670	6
KGOI-500	500	600 X 630 X 1330	750 X 1090 X 1940	8
KGOI-600	600	800 X 800 X 950	950 X 1260 X 1560	5
KGOI-800	800	800 X 800 X 1250	950 X 1260 X 1860	7
KGOI-1000	1000	800 X 800 X 1570	950 X 1260 X 2180	10
Note: Other size of B O D Incubator and walk in bod incubator are available on request.
