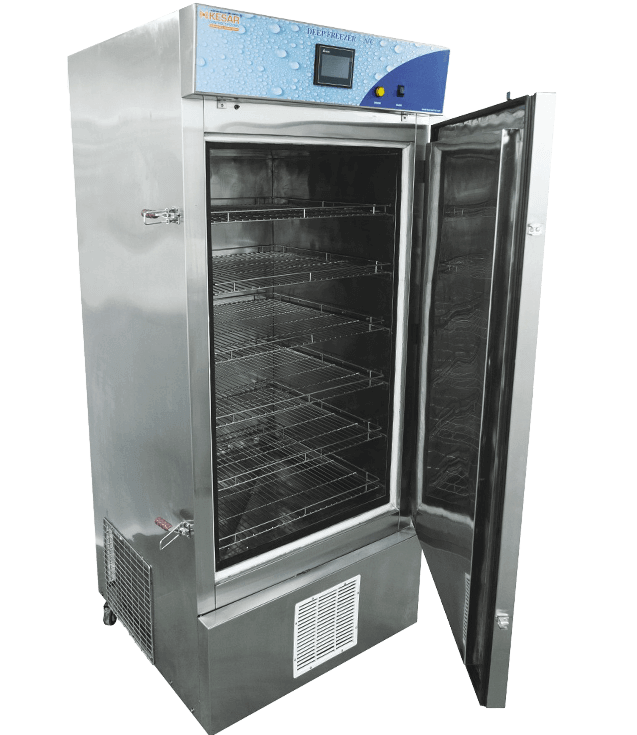

Ultra Low Freezer

Features

  • Fabricated on fully automatic CNC machines.
  • The inner working chamber is water & vapour tight high-grade stainless steel.
  • All seams are arc-welded & passivity for strength & durability.
    Chambers are provide with effective air circulation system.
  • Hermetic compressors build on cascade system with CFC free refrigeration.
  • Equipment mounted on heavy castor wheels for easy movement.
  • Heavy duty solid stainless duly electro polished wire mesh type trays are provided which are easy to clean, time & efforts saving, also adjustable for convenience.

Technical Specification

Temperature Range -50°C to -80°C
Accuracy 3.0 °C
Uniformity 10.0°C
Control System PLC or PID Based

Material Of Construction

Models Material of Construction
Interior Exterior
STD S.S.304 Dull Finish G.I  Powder Coated
GMP S.S.304 Dull Finish S.S.304 Dull Finish
CGMP S.S.316 Dull Finish S.S.304 Dull Finish

Size Of Ultra Low Freezer -80*C

MODELS CAPACITY in Litres INNER SIZES IN MM ( W X D X H ) OUTER SIZES IN MM ( W X D X H )
KGOF80-100 100 450 X 450 X 500 710 X 710 X 1560
KGOF80-200 200 600 X 600 X 600 860 X 860 X 1700
KGOF80-325 325 600 X 600 X 900 860 X 860 X 2000
KGOF80-400 400   600 X 630 X 1060 860 X 890 X 2260
KGOF80-600 600 800 X 800 X 950 1060 X 1060 X 2150
